Interior Drain System in Chilliwack, BC

How an Interior Drain Tile System Works

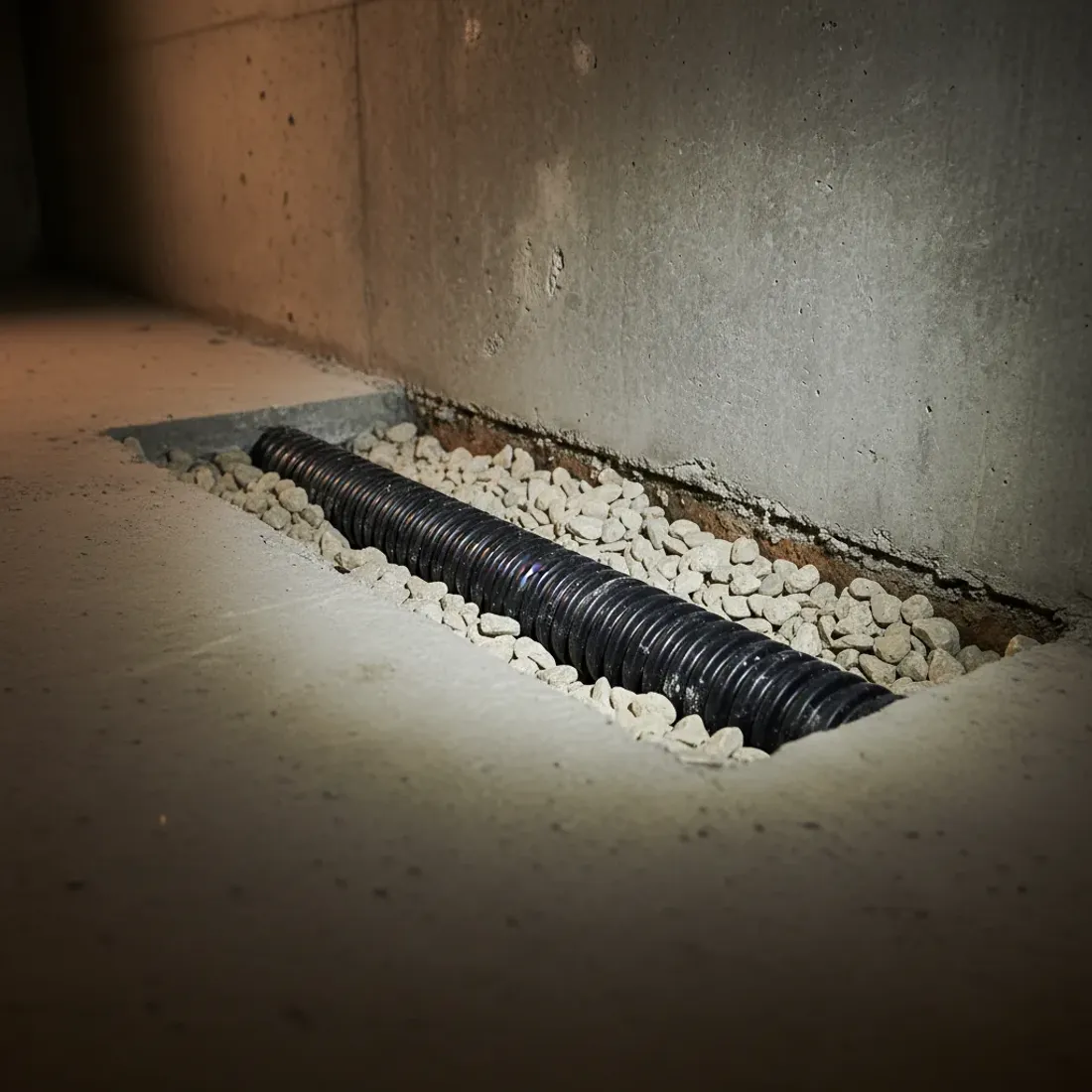

An interior drain tile system, sometimes called interior weeping tile, is installed along the inside perimeter of your basement, not around the outside of the house. We cut a channel into the concrete floor next to the foundation wall, roughly a foot wide, and lay perforated drain pipe in a bed of gravel below the level of the slab.

Water that seeps in through the wall-floor joint or through the block or concrete itself, rather than pooling on the floor, drains down into that channel and flows through the pipe to a sump pit, where a sump pump lifts it out and discharges it away from the foundation. The channel gets capped with new concrete once the pipe and gravel are in, leaving a discreet gap along the base of the wall rather than a visible trench.

Because the whole system sits inside the basement, installation doesn't touch your yard, landscaping, or driveway. It's a faster, less disruptive job than digging up the exterior perimeter, which is why it's the most common fix we install for basements with ongoing seepage rather than a single isolated crack.

Interior Drain Tile vs Exterior Perimeter Drains

Both systems move groundwater away from your foundation, but they intercept it at different points. Exterior weeping tile sits outside the foundation at the footing, catching water before it ever touches the wall. Interior drain tile catches water after it has already reached the inside face of the wall or floor joint, which means the wall itself stays exposed to moisture on the outside even though your basement stays dry.

That difference is why interior systems cost less and install faster. There's no excavation, no landscaping to restore, and no weather delays from digging in wet Fraser Valley soil. The tradeoff is that an interior system doesn't stop water from reaching the concrete, only from reaching your floor. For most basements with moderate to significant seepage and no other structural concerns, that's an easy tradeoff given the cost difference. For basements with a genuinely high water table or hydrostatic pressure pushing against the wall constantly, we'll usually recommend pairing interior drain tile with exterior waterproofing or crack injection rather than relying on drainage alone.

Signs Your Basement Needs an Interior Drain System

A single hairline crack with occasional dampness is usually a candidate for crack injection alone. An interior drain system becomes the right call once water is showing up in more than one spot, or along the wall-floor joint itself rather than through an identifiable crack.

Watch for water that appears at the base of the wall after heavy rain, white efflorescence staining spreading along the lower wall (a sign of ongoing moisture migration through the concrete), a musty smell that doesn't clear up, or a floor drain and sump pit that seem to be working overtime every wet season. If you've had standing water on the floor more than once, that's usually past the point where injection alone will solve it, since it means water is entering broadly across the wall-floor joint rather than through one crack.

We check the whole perimeter during the free inspection, not just the spot you're worried about, because seepage on one wall often means the water table or grading issue affects the whole foundation, even if it's only shown up in one place so far.

Cost and Installation Timeline

Interior drain tile typically runs $30 to $230 per linear foot depending on basement size, concrete thickness, and access, with a full-perimeter system for an average home landing in the $3,000 to $10,000 range. If a sump pump isn't already in place, add roughly $500 to $1,500 for the pit, basin, and pump itself.

Most interior drain tile jobs take one to two days from start to finish: cutting the channel, laying pipe and gravel, connecting to a sump pump, and pouring new concrete over the channel. There's no long cure-time wait beyond the new concrete setting, and most homeowners are back to normal basement use within a day or two of the pour.

We give you a written quote broken out by linear foot after walking the full perimeter, since the length of wall needing coverage, not the total basement size, is what actually drives the price.
